Description
DESCRIPTION

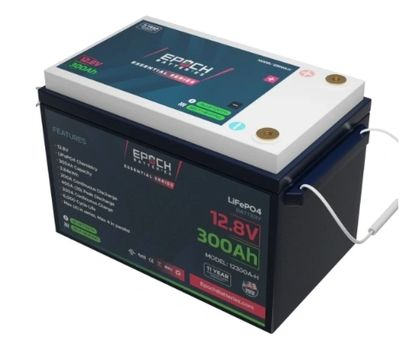

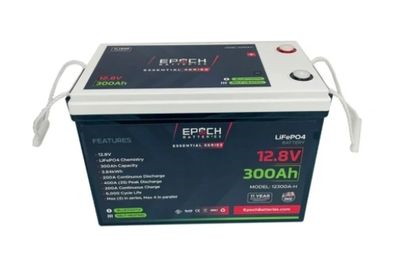

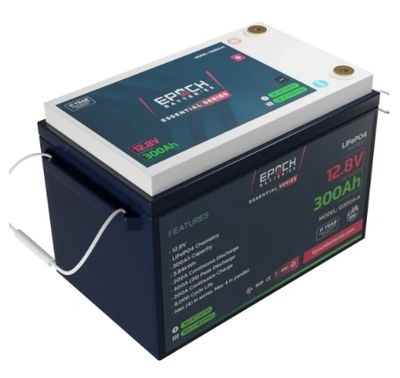

This is the 12v – 300ah Deep Cycle lithium battery by Epoch Batteries. All Epoch Batteries products come with an 11 year manufacturer’s warranty, the link to the warranty is listed below. This battery ships hazmat certified by UPS in one single box. The Epoch 12v – 300ah is designed to fit into nearly every battery compartment, please double check the size information below.
If you need a 12v shore powered charger, please add this item on under the ADD ONS drop down menu.
Recommended add on items (listed under the ADD ONS drop down menu)

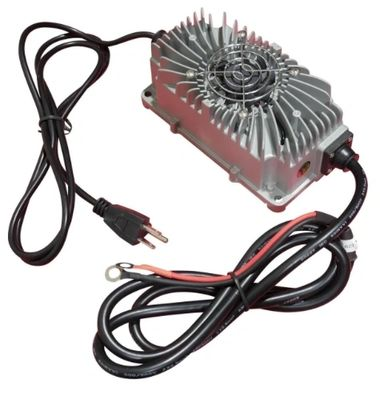

– Epoch Batteries 12v – 15a shore powered charger – $139
– NOCO AC charging port – $34.95
– Heavy duty Bolt Energy USA charging extension cord – $44.95
BATTERY SPECIFICATIONS
LiFePO4 Chemistry
Peak Discharge of 1,000A @ 5s, 800A @ 10s
Max Charge Current of 300A (Continuous)
Max Discharge Current of 300A (Continuous)
Victron Comms – CANBUS entire string of batteries to Victron Ecosystem
HEATED – Internal heating allows for charging in sub-zero conditions
BLUETOOTH – iOS and Android Apps
BLUETOOTH – Over the air Firmware update via the app
External Battery Gauge – Touch Screen (Optional – Coming soon)
Communications Box for more Inverter, NMEA2k compatibility (Optional – Coming soon)
IP67 Rated, Dust and WATERPROOF
Over current and short circuit protection
High & low temperature disconnects
Max (4) in Series up to 48V
Max (16) in Parallel
6000+ Cycle life & Maintenance-free
11 Year Manufacturer Warranty
Cell Configuration: 4S3P
Chemistry: LiFePO4
CURRENTAh Capacity: 300Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 300A
Max Discharge Peak Current Amps: 1,000A @ 5s
Series | Parallel: Max (4) in Series, Max (16) in Parallel
VOLTAGEVoltage: 12.8V
Max Charge Voltage: 15.4V
Operating Voltage Range: 10.0 – 15.4V
TEMPERATURECharge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
WEIGHT & DIMENSIONS
Weight: 81 lbs
Length: 19.70 (inches)Width: 10.5 (inches)Height: 9.75 (inches)
ADDITIONAL INFORMATION
Warranty information – https://www.epochbatteries.com/faqs
Certifications:
UL1973, RoHS, CE
